Model
Max-Fan 560/9550
Material
Aluminium
Weight
38 kg
Diameter
560 mm
Capacity
9550 m3/h
Current
7.6 A
Power
1120 W
Speed controller allowed
Yes

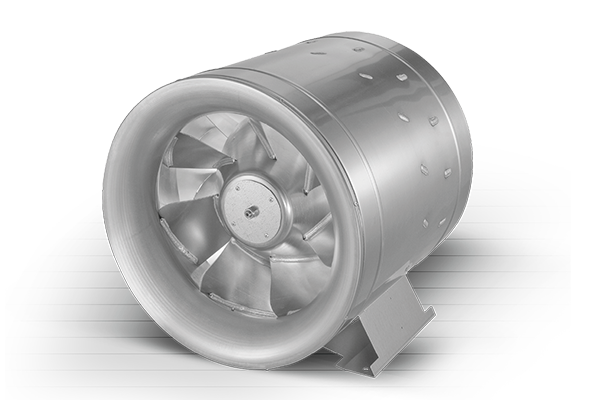

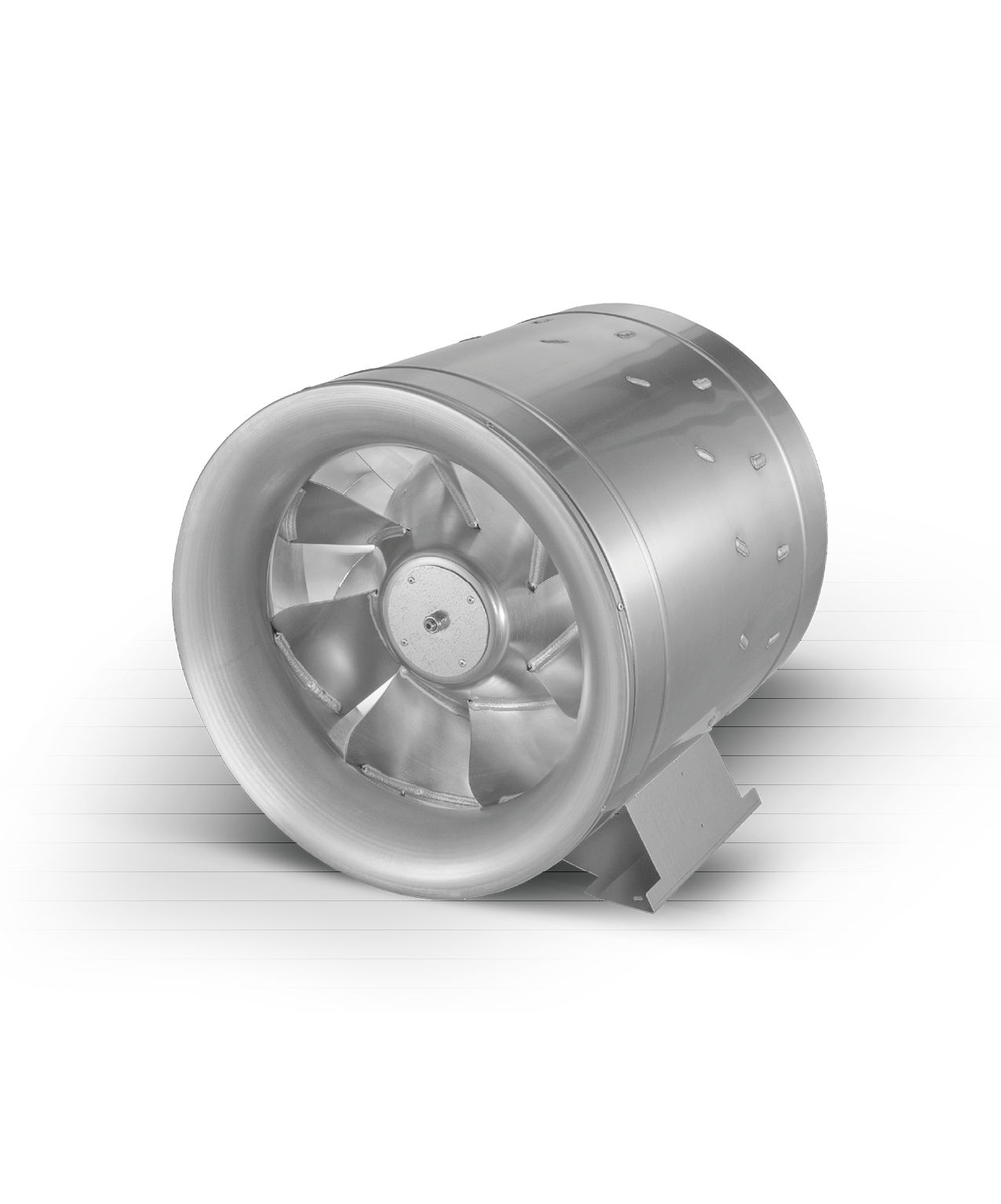

Max-Fan is a unique diagonal tube fan, designed to be efficient, powerful and less noisy. The rotor-stator system makes Max-Fan the most efficient fan on the market, taking into consideration both air performance and power consumption.  The rotor pushes the air out in a swirl, while the stator transforms this swirl into an uniform jet of air, preventing pressure loss, noise and unnecessary power consumption. The efficiency rate for Max-Fan is 50 %, higher than any conventional one propeller tube fan, available on the market today.

Max-Fan one speed is now controllable using Can-Fan Satellite 4A, this combination functions as a speed Controller. In case you want to have full control, just Plug Can-Fan LCD EC Controller in Can-Fan Satellite 4A and you are ready to go.

As a protection for the motor, it is equipped with a thermal switch, that turns off the motor if it reaches a dangerous working temperature. In addition, Max-Fan comes with mounting brackets for an easier use.

For efficient performance with the best possible results, we strongly recommend the use of Max-Fan together with Can Filters.
